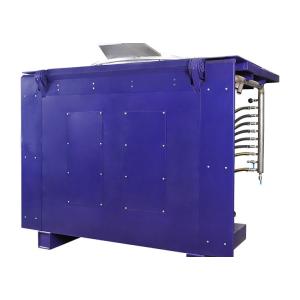

1t Iron Scrap Copper Cast Iron Steel Melting Coreless Electromagnetic Induction Furnace
Induction melting furnace features:
1. Environmental protection, Energy saving ,Safety,Stability
2. The life of induction furnace with steel shell is longer than aluminium shell due to the magnetic losing is less.
3. The heating losing be decreased and the safety be increased by the furnace coving using.
4. Cyclone dust removal cover have excellent effect of vacuuming, temperature keeping and space saving ,the cover can tilting and suspending in any location.
5. The yoke made of silicon steel sheet can shield the magnetic of induction coil . the magnetic losing be decreased .the heat efficiency be increased and the output are more by 5%-8% by using yoke.
Technical parameter of the Induction Steel Shell Melting Furnace Aluminum Casting Furnace
| Model | KGPS-300 | KGPS-500 | KGPS-1200 | KGPS-1400 | KGPS-2000 | KGPS-4500 |
| Rated power | 300KW | 500KW | 1200KW | 1400KW | 2000KW | 4500KW |
| Rated capacity | 350kg | 750kg | 1500kg | 2000kg | 3000kg | 6000kg |
| Matching transformer’s capacity | 315KVA | 630KVA | 1250KVA | 1800KVA | 2500KVA | 5500KVA |
| Input voltage | 380V 50-60HZ | 750V 50HZ | 750V 50HZ | 6x750V 50HZ | 6x750V 50HZ | |
| MF frequency | 1000HZ | 1000HZ | 800HZ | 500HZ | 500HZ | 300HZ |
| MF voltage | 750V | 750V | 1400V | 1480V | 1460V | 4800V |
| DC voltage | 500V | 500V | 990V | 990V | 990V | 1350V |
| DC current | 600A | 1000A | 1000A | 1410A | 1010A | 3300A |
| Maximum temperature | 1800℃ | |||||
